GSM 3G 4G 5G Phone Wifi RF Jammer Module

GSM 3G 4G 5G Phone Wifi RF Jammer Module

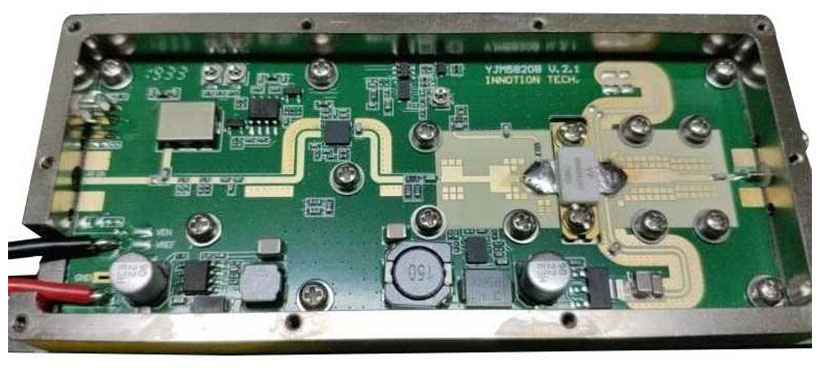

It is a customized GSM 3G 4G 5G Phone WiFi RF jammer module.
The frequency is 2G 3G 4G 5G wifi or others.
Output power is optional in 5W ,10W, 20W, 30W, 50W, 100W, 200W.
Categories: ,

Description

1.Product Introduction

It has a multiple use by this GSM 3G 4G 5G Phone WiFi RF jammer module, such as RF system and solution, for Defense industry, Aerospace, Telecommunication, etc.

2.Specification

* Brand: TeXin

* Below specification is for 100W output power GSM 3G 4G 5G Phone WiFi RF jammer module

No. Item Data Unit
1 Frequency Customized MHZ
2 Work Temperature -10~+75℃ ℃
3 Max Output Power 100 W
4 Work Voltage DC24 V
5 Max Gain 50±1.5 dB
6 Flatness ±3 dB
7 Max Current 9.4 A
8 Output VSWR ≤1.5
9 Output Connector N/F 50Ω Customized
10 Power Amplifier Efficiency 41.6 when max output
11 Switch Control high low
level current		 V (0V off /0.6 on)
12 Standing Wave Protection OK
13 Temperature Protection 75° ℃
14 Size 220*110*24 mm
15 Weight 0.88 Kg

3.Product Feature

* For this GSM 3G 4G 5G Phone WiFi RF jammer module

* Aluminum alloy cavity for fast heat dissipation

* Small size for its compatibility multiple application

* High strong power push of original RF amplifier

* VWSR protection

* Ultra high power can reach 100W 200W



4.Application

For this GSM 3G 4G 5G Phone WiFi RF jammer module, such as Jammer, Lab equipment, etc.
