Description
1.Product Introduction

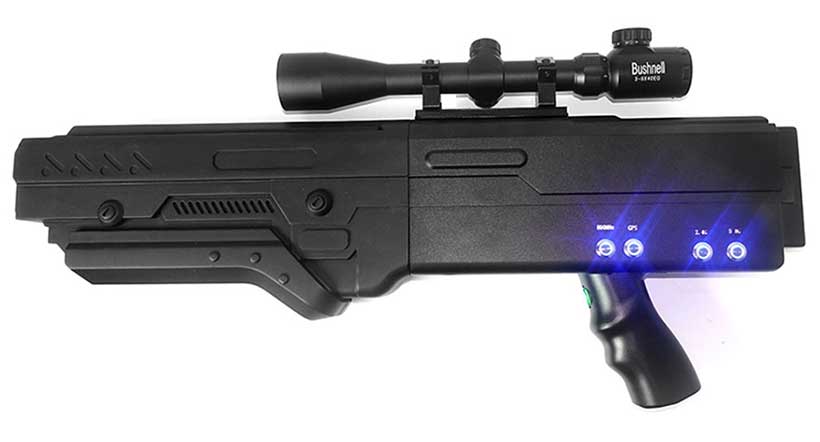

It will transmit the high power jamming signal to force the entering drone out of ground control, to return home or force land. With this UAV drone killer gun signal jammer, the drone can not send the reconnaissance photo and video to the ground anymore; also, the ground will lose control of the drone.
2.Specification
Brand: TeXin Model: TX-FQ-01 Type: UAV drone killer gun signal jammer
| Jamming Band | Working Frequency(MHz) | Average Output Power |
| CH1 | 900 | 15W |
| CH2 | GPSL1 | 15W |
| CH3 | 2.4G | 30W |
| CH4 | 5.8G | 20W |
| Jamming Range | 1500-2000meter
(Frequency Hopping Drone is 500-800 meter) |
|
| Body Size | 58*22*6cm | |
| Body Weight | 5.5kg (External Battery is 1.14kg) | |
| Battery Capacity | 24V/5A (External battery can be customized) | |
| Battery Operation Time | 30-60 Minute | |
| Working Temperature | -40℃~75℃ | |
| Working Humidity | 35~85% | |
| Power Consumption | ≤240W | |
| Power Input | AC160V~240V | |
| Power Output | DC 24V/10A | |
- Product Feature
* Reliable UAV Drone Killer Gun Signal Jammer
* 4 channel customized for effective drone defence
* Can choose replaceable inside battery or External battery
* Ultra high output power to ensure long range 1000-2000 meter
* Easy use no training need
* Portable size, Durable out shell
* High gain built in directional antenna
* Fast ready time
*Two power supply choice; if standby status it can last 2 weeks,Removable Battery (30-60 minutes),External Battery (60 minutes or More)
* Low out of band emission
